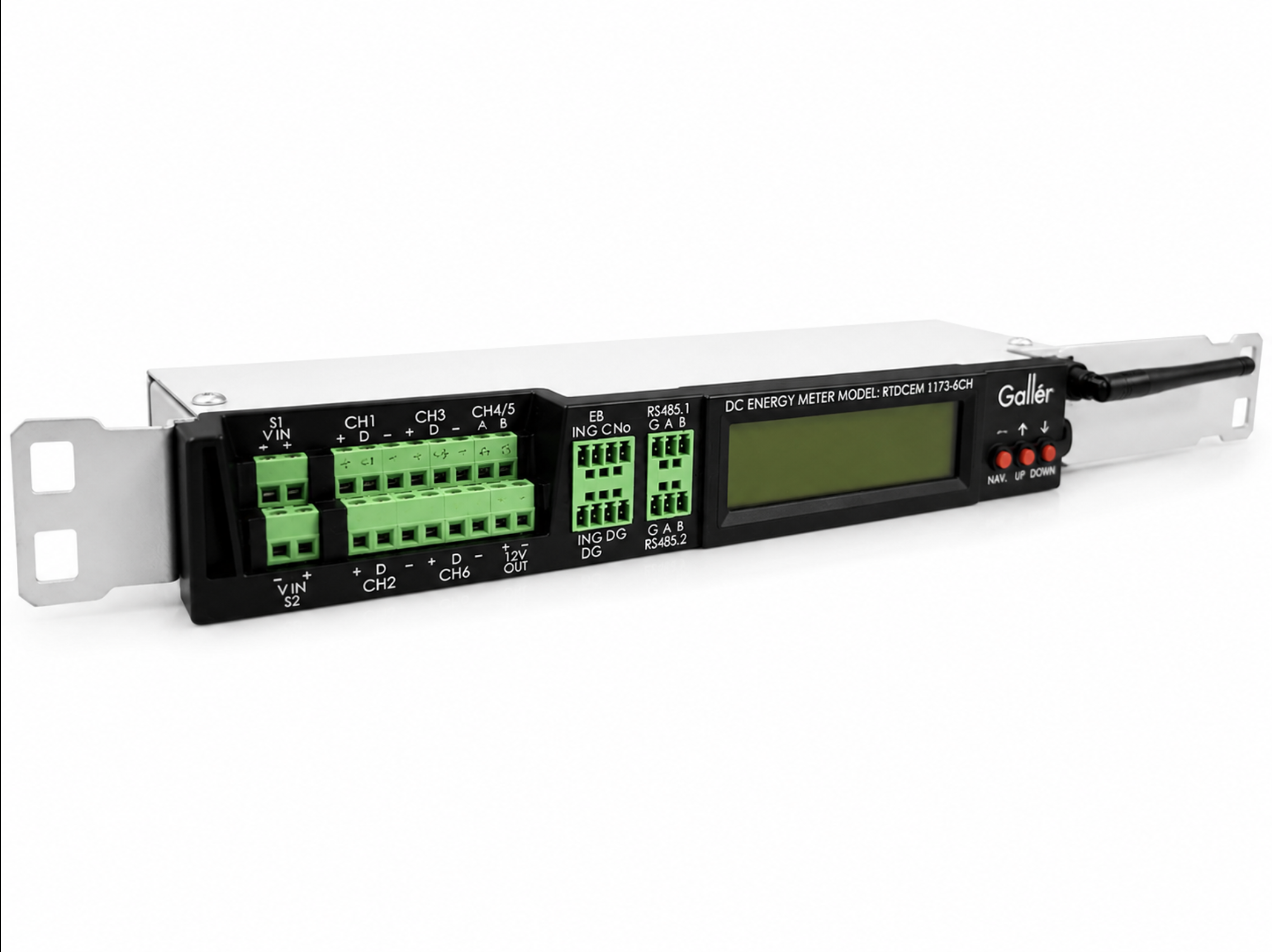

DC Energy Meter 5+1 Channel (Model: RTDCEM1173-6CH)
The RTDCEM1173-6CH is a 5+1 channel DC energy meter built for accurate DC power measurement in telecom/industrial sites, operating on an 18–62V DC input range. It uses a 32-bit microcontroller with 6-channel Hall-sensor current sensing (200A & 500A), delivers Class 1 (±1.0%) accuracy, and communicates via isolated RS-485/Modbus with optional GPRS/3G/LTE connectivity. Housed in a steel powder-coated body, it offers a web dashboard, event logging, digital I/O, reverse-polarity protection, and remote firmware upgrades for dependable, remotely managed energy monitoring.
Key Features
- 5+1 channel DC metering - 6 channels via Hall sensors (3×125A, 1×500A + auxiliary 1×150A, 1×500A) at Class 1 accuracy (±1.0% on energy/power and full-scale current/voltage), with fine resolution (0.001 kWh, 0.1V, 0.1A, 0.1kW).
- Isolated communication & connectivity - 2× isolated RS-485 (Modbus) ports, optional GPRS/3G/LTE, plus SNMP, DHCP, and IPv6 support.
- Remote firmware upgrade (FOTA) - firmware and configuration files upgradeable remotely over the air.
- 32-bit processing with ample storage - 8.5 MB SRAM and 16 MB flash, holding 60+ days of data / 10K+ events.
- Digital I/O and web management - 4× opto-isolated protected digital inputs, browser-based dashboard for full equipment overview, active-alarm view, digital input config, event logs (10K+), and soft-reboot.
- Rugged, protected design - hardware + software watchdog, reverse-polarity protection, >20MΩ insulation, 2KV dielectric test, steel powder-coated body, and -5 to +60°C operating range.
